Vacuum Extruders

Patented In-Line & Dual Stage Vacuum Extrusion Options

4 in Vacuum Extruder

Bonnot has been manufacturing extruders with vacuum capability for over 100 years. The traditional dual stage ‘piggy-back’ style is still employed today. We also now have a patented in-line vacuum extruder available as well. The in-line system is customizable for a wide range of material viscosities and output requirements. The system is configured with multiple temperature control zones to enhance processing. The system incorporates the trusted ‘twin packer’ design in the hopper to maintain a continuous feed. Both the traditional dual stage and in-line vacuum extruders are available in our Test Facility to verify functionaility.

Design Features

In Line Vacuum Extruder Diagram
  1. Patented In-Line Vacuum Chamber
  2. High Torque Gear Motor
  3. Jacketed Barrels for Temperature Control
  4. Twin Packers to Aid Material Ingestion
  5. Robust Gearbox Design

Extruder Standard Specifications

Model
2 in Piggy Back Vacuum Extruder
VP 2 Series
2 in Piggy Back Vacuum Extruder
VP 4 Series
4 in Vacuum Extruder
VI 4 Series
8 in In Line Vacuum
VI 6 Series
8 in In Line Vacuum
VI 8 Series
Output 100-175 lbs/hour 600-1000 lbs/hour 600-1000 lbs/hour 1500 - 2500+ lbs/hour 2000 - 3500+ lbs/hour
Hopper Opening 6” x 5” 11.75” x 9.88” 11.75” x 9.88” 18” x 13.5” 20.5” x 17”
Motor 10 HP 25 HP 25 HP 75 HP 125 HP
Model
2 in Piggy Back Vacuum Extruder
VP 2 Series
2 in Piggy Back Vacuum Extruder
VP 4 Series
4 in Vacuum Extruder
VI 4 Series
8 in In Line Vacuum
VI 6 Series
8 in In Line Vacuum
VI 8 Series

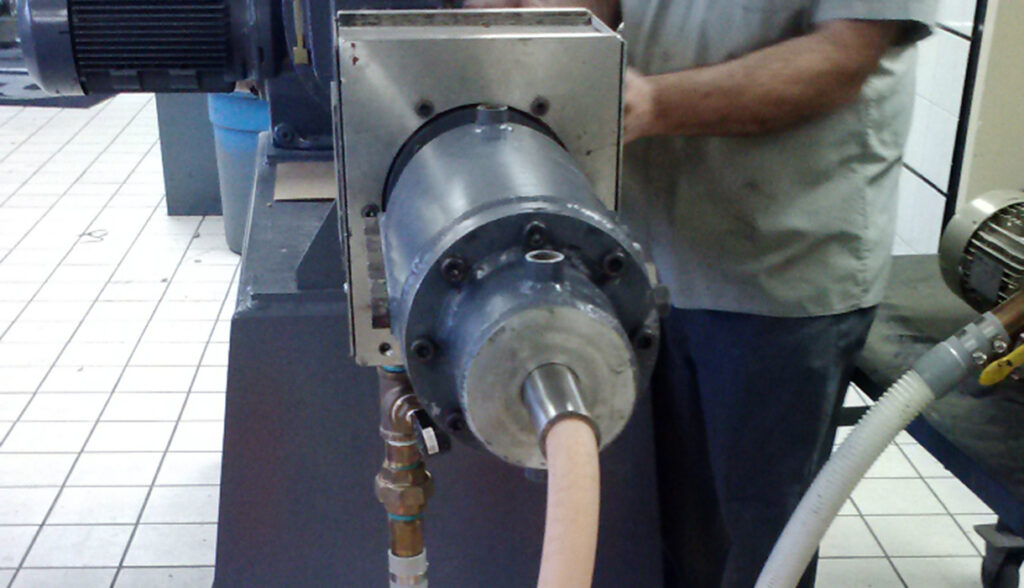

Testing a Vacuum Extruder

Testing a

De-Airing Clay

De-Airing Clay

De-Airing Clay on our patented in-line vacuum extruder

Major Customers

Relevant Ancillary Equipment

6 in Rotary Cutter

Extruder Cutter

We offer a range of cutters for our extruders.

PLC Controls

Extruder Controls

The Bonnot Company Offers a Full Range of Control Options For Our Extrusion Systems

6 in Multi Hole Die Plate

Extrusion Dies

Bonnot Offers a Variety of Extrusion Dies in Various Sizes

Want to Prove it Out?

The Bonnot Company is pleased to offer FREE feasibility testing in our test facility. Come and take advantage of our comprehensive catalog of test equipment; different extruder designs, screw geometries, forming dies, temperature control options, mixers and material testing equipment.
