Cooking Extruders

Bonnot Cooking Extruders have been used for decades by leading food manufacturers worldwide

Bonnot Single Screw Cooking Extruders are optimized for continuous mechanical cooking of a wide variety of food products.

A pre-mixed recipe is fed into a Bonnot which continuously cooks and forms a shape for cereals, animal feeds, floating fish food, CBD products and many more. Bonnot Cooking Extruders differ from Forming extruders, having a longer L/D with multiple jacketed barrels for temperature management and deploying a hollow compression screw to induce mechanical shear through the material. The Bonnot Cooking extruders can be used in place of a traditional batch process, offering continuous cooking. Uses: Pet food, food product development, gelatinizing starches, zoo animal feed, cereals, confectionary and many more.

Extruder Design Features

1Stainless steel construction

2Food safety standards applied

3Longer L/D (20:1+)

4Multiple zone temperature control for heating, including screw

5Compression screws induce shear and evenly heat

6Many die configurations for your application

Available in a range of sizes

CO 1 Series

Starting from
$60,000
Output (lbs/hour)
5-15
Approximate Layout (L x H x W)
35" x 22" x 16"
Hopper Opening
3” x 2.4”
Approximate Weight (lbs)
131
Motor Power (HP)
0.5

Extrude, pasta, cereals, and more

The Bonnot Cooking Extruders can be use to gelatanize starches, process corn based products, floating fish food. and many more food cooking processes.
The machines can also be used for pet foods.

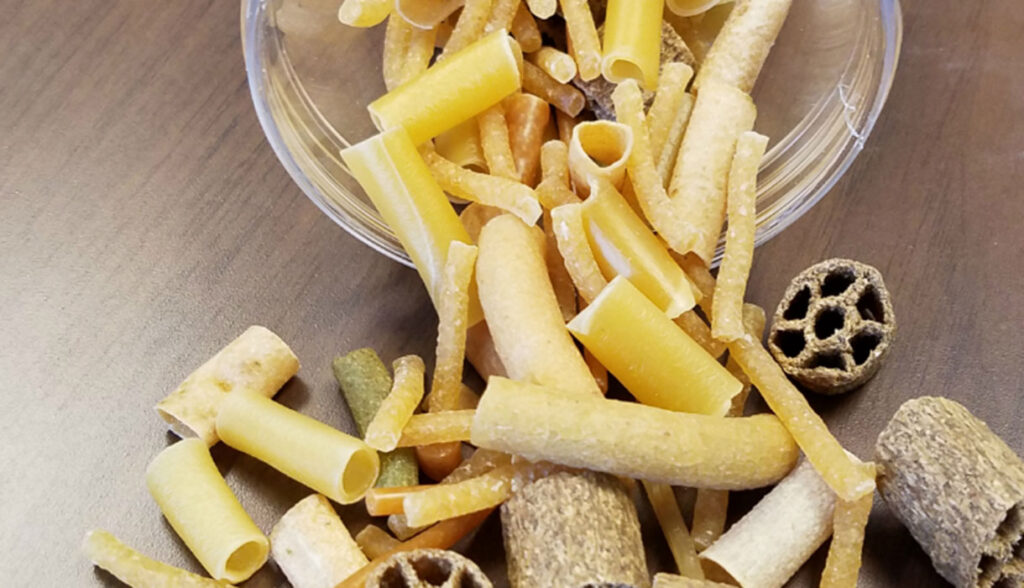

Samples of extruded foods

Cereals, candy, inclusions and more

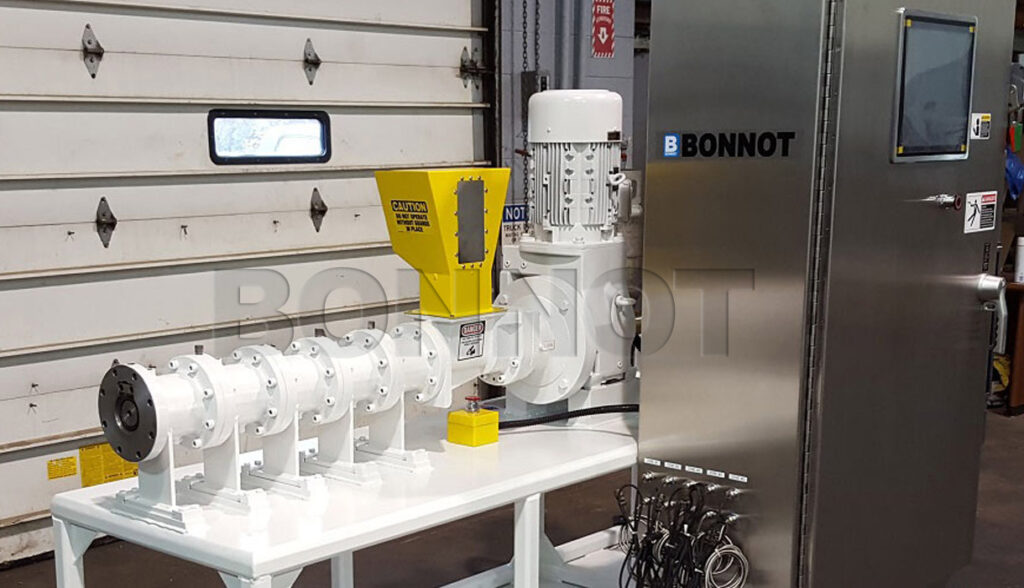

2 Series Cooking Extruder with Controls

This custom made-to-order cooking extruder is operating in a test kitchen

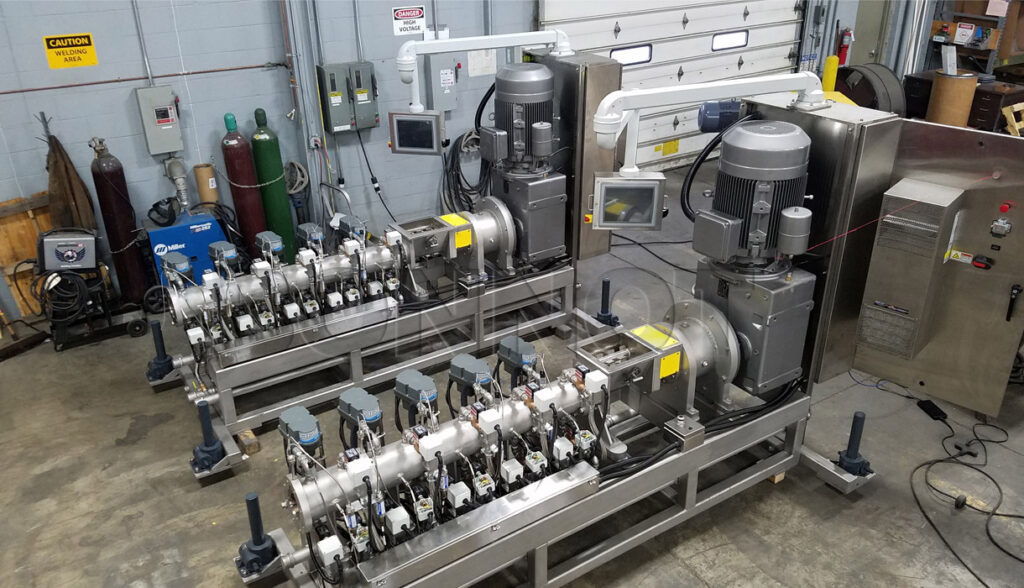

State-of-the-Art Cooking Extruder

This cooking extruder has provisions for both steam and water heating and cooling in seperate zones, controlled from a touch screen.

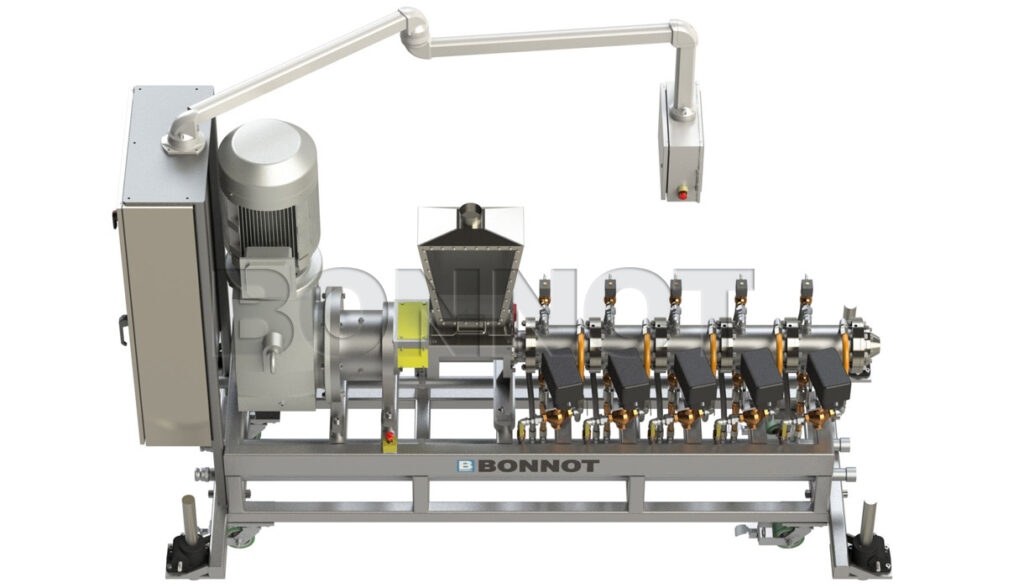

4 Series Cooking Extruders

Want to prove it out?

The Bonnot Company is pleased to offer FREE feasibility testing in our test facility. Come and take advantage of our comprehensive catalog of test equipment; different extruder designs, screw geometries, forming dies, temperature control options, mixers and material testing equipment.

Get in touch with us
